    HINGES

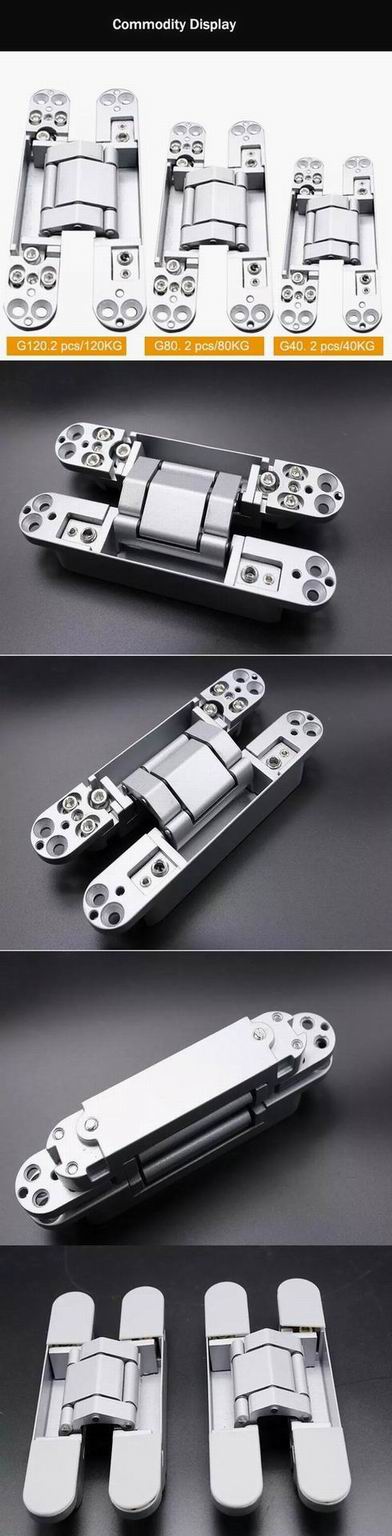

    G80 Hiding door hinge

    Features

    For wooden doors

    For flush doors

    Concealed installation

    Adjutable after installed

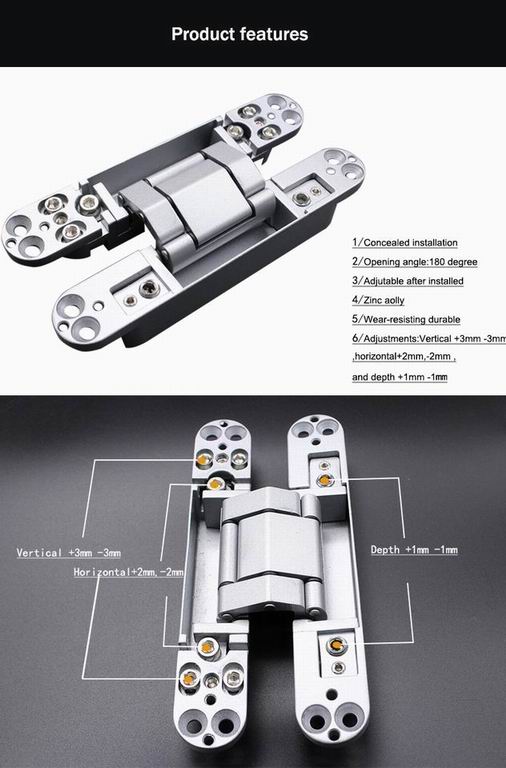

    Adjustments:

    Vertical +3mm -3mm ,horizontal+2mm,-2mm ,and depth +1mm -1mm

    Opening angle:180 degree

    Technical data:

    Max.door weight with 2hinges   40kg

    Min.door thickness            35mm

    Max.door width               850mm

    Slim design for thin door        21mm

    Materials:  Zinc Alloy,Alum

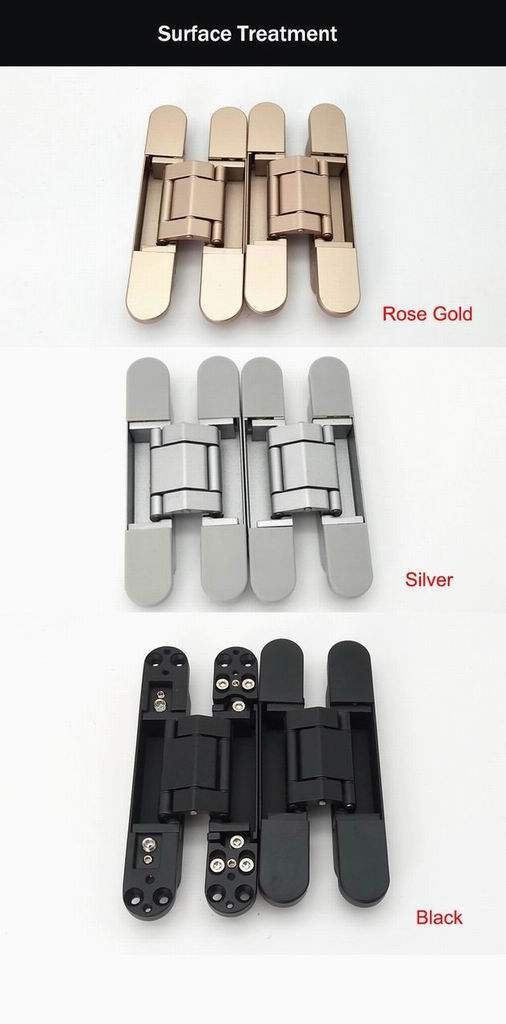

    Finishes :Chrome ,Nickle ,Brass and Painting

    Installation : wood tapping screws, Iron screws(optional)

    Note

    Finger protection due to small gap between door and frame

    Application

    Completely concealed for flush door with wood steel or aluminum frame

    180 degree opening angle zinc alloy hiding door hinge

    180 degree opening angle zinc alloy hiding door hinge

    180 degree opening angle zinc alloy hiding door hinge

    180 degree opening angle zinc alloy hiding door hinge
